    JIS F-2020 Small Size Steel Plate Deck End 2 Roller 3 Rollers Ship Mooring Equipment

    JIS F-2020 Small Size Steel Plate Deck End 2 Roller 3 Rollers Ship Mooring Equipment


    Description:

    Deck end roller is located on the overboard side deck for ship’s mooring. It is produced according to Japanese standard. It is an important device for ship mooring. It is a universal fairlead which helps to lead the ropes from directions. Smooth surface protects the rope.


    Main Technical Specification:

    1. Model Type: Type A, Type B1,Type B2

    2. Materials: C-Mn Steel, Mild Steel, Stainless Steel

    3. Standard: JIS F 2020-1979

    4. Roller No.: 2 Rollers (Type A) , 3 Rollers (Type B1,Type B2)

    5. Nominal Size:76mm~426mm

    6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.

    7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA


    Main Technical Parameter:

    TypeABCDEE1FGH
    7613480987613424414090152
    101177106129101177323185119201
    13523614117213236431247159268
    168296176215168296538309199335
    4265963704914265961160314660722

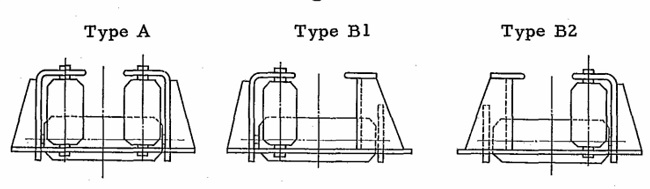

    Type A

    Type B

    Drawing of JIS F-2020 Small Size Steel Plate Deck End 2 Roller 3 Rollers Ship Mooring Equipment
