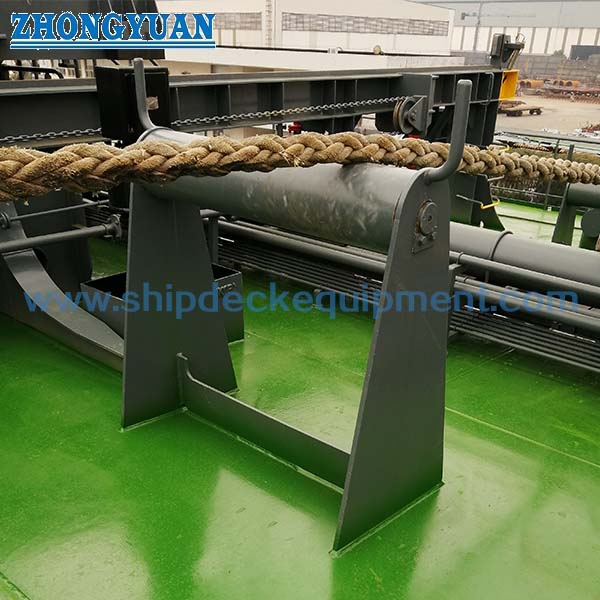

    CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment

    CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment


    Description

    This type of fairlead is deck mounted, and positioned inner board. Normally it used together with middle ship mooring winch and leading the PP rope to the overboard roller fairlead. It is widely used on all kinds of ship. Our fairleads reach the international standard and obtain the certificate of quality. We can also provide Fiber Reinforced Plastics fairleads and the customized fairleads for our customers.


    Main Technical Specification:

    1. Standard: CB/T 435-2005
    2. Type: Type B inner board deck mounted;
    3. Roller diameters: 200 & 250 mm;
    4. Weight: 123.5 & 197.5 kg
    5. Materials: C-Mn Steel, Mild Steel, Stainless Steel
    6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
    7. Classification Certificates:Maker’s certificate, CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, etc.

    Main Technical Parameters:

    Nominal DiameterDD1TT1hBLL1L2HFrame
    L Bar
    SWL
    kN
    Weight
    kg
    2002003001014175240600
    800
    1000
    1200
    L+44150010 X 100 X 10100123.5
    2502503501219200300L+54125 X 125 X 14210197. 5
    Note: Weight is calculated on L=800mm, H=1 200mm

    Drawing of CB/T 435 Type B Deck Mounted Inboard Horizontal Roller Fairlead Ship Mooring Equipment
