    Casting Steel Bolted Type Mooring Kevel Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

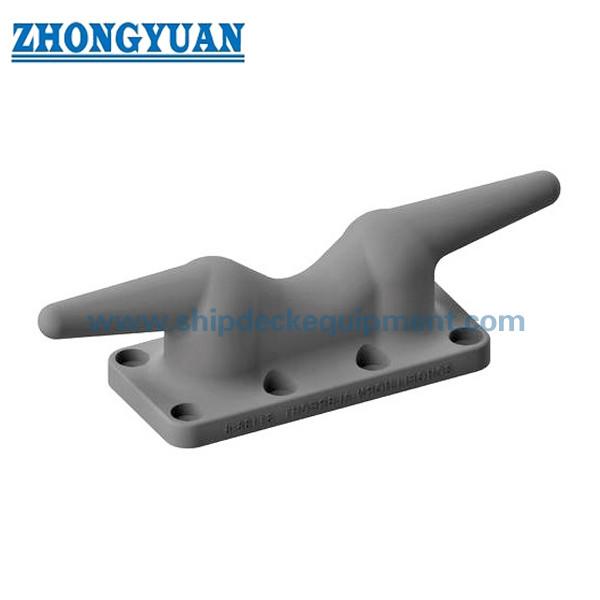

    Casting Steel Bolted Type Mooring Kevel Ship Mooring Equipment

    Casting Steel Bolted Type Mooringl Kevel Ship Mooring Equipment


    Description:
    Casting Steel bolted type mooring kevel is used in workboat berths and marines around the world. They are created with the same care,modern design methods and choice of materials as their larger cousins. Cast iron bollard and cast steel bollard arewidely used around the world.

    Main Technical Specification:

    1. Technical Standard: GB 2026

    2. Rope Diameter: ⌀35, ⌀50, ⌀70mm

    3. Weight: 1.33 to 11.2kg

    4. Materials: Casting Copper, Casting Bronze, Casting C-Mn Steel, Casting Stainless Steel, Nodular Cast Iron

    5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Galvanized, Polished, customized surface treatment available.

    6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

    7. Can be Customized


    Main Technical Parameter:

    Maximum Diameter
    of Hemp Rope
    LL1L2AA0BB1B2B3HH1H2H3δrr1r2r3Weight
    Kg
    Material
    3520012071568888563230504116971612891.33Cast copper
    5033020011490150140905046766323108252012153.57
    754402501601101901701106460958027119302516188.45
    302001206556888856323053441912101612891.7Cast steel
    50330200106901501409050468067271412252012155.9
    754402501501101901701106460100853216143025161811.2

    Drawing of Casting Steel Stainless Steel Bolted Type Mooringl Kevel Ship Mooring Equipment
