Brand Name : | Zhongyuan |
Certification : | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Model Number : | Standard and Customized |
Price : | As per quotation |
Delivery Time : | As per offer |
Payment Terms : | TT, L/C, Etc. |
Supply Ability : | Satisfy clients needs |

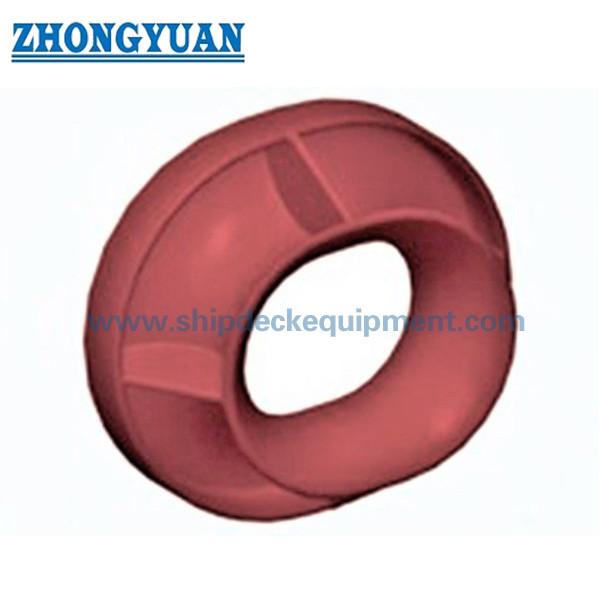

JIS F 2017-1982 Type BP Steel Plate Fabricated Bulwark Mounted Panama Chocks Ship Mooring Equipment
Description:
Panama chocks are popular as mooring equipment, which can stand great loads when mooring ships and vessels. We can provide all 4 type in JIS F 2017-1982. type AC, AP are deck mounted , type BC, BP are bulwark mounted chocks. Type BP is steel plate fabricated chock.
Main Technical Specification:
1. Standard: JIS F 2017-1982
2. Type: BP;
3. Materials: Casting C-Mn Steel, Casting Stainless Steel, also can supply special steel for icebreaker.
4. Weight: 184kg & 193kg;
5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished Stainless Steel, customized surface treatment available.
6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS
Main Technical Parameter:
Nominal Size | L | L1 | L2 | weight kg |
310 | 310 | 702 | 620 | 184 |
360 | 360 | 752 | 670 | 193 |
Drawings of JIS F 2017-1982 Type BP Steel Plate Fabricated Bulwark Mounted Panama ChocksShip Mooring Equipment
![]() |
