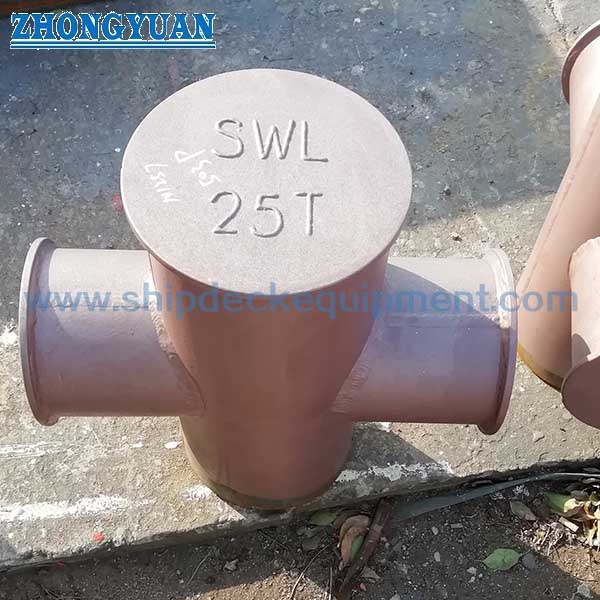

    ISO 13797 Plate Fabricated Pipe Welded Mooring Towing Cruciform Bollards Ship Towing Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    ISO 13797 Plate Fabricated Pipe Welded Mooring Towing Cruciform Bollards Ship Towing Equipment

    ISO 13797 Plate Fabricated Pipe Welded Mooring Towing Cruciform Bollards Ship Towing Equipment


    Description:

    The crusiform bollards is suitable for installation on sea going vessels to meet normal mooring and towing requirements


    Main Technical Specifications:

    1. Nominal Diameters: 150 to 350mm;
    2. Technical Standard: GB/T 36665-2018 & ISO 13797:2020(E)
    3. Material: Mild Steel; Stainless Steel ;
    4. Weight: 31 to 204kg;
    5. SWL: 78-736KN
    6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
    7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

    Main Technical Parameter:


    Nominal
    size
    Dn
    TypeID1D3T1T2HhWelding
    leg length
    note a
    z
    SWL
    note b
    kn
    SWL
    note b
    ton

    Calculated

    weight
    note c
    kg

    150Type A350165,2114,311,08,6450225678837
    Type B350170,0120,08,08,0450225578831
    200Type A450216,3165,212,711,050025071471558
    Type B450220,0170,010,08,050025071471548
    250Type A575267,4216,315,112,760030082452592
    Type B575270,0220,013,010,060030082452581
    300Type A625318,5267,417,415,16003001039240132
    Type B625320,0270,015,012,0600300939240115
    350Type A670355,6267,419,015,16003501049150150
    Type B670360,0270,016,012,0600350949150130
    400Type A720406,4267,421,415,16003501073675178
    Type B720410,0270,019,014,0600350973675165
    a Welding with chamfering is available based on the same welding volume/strength.
    b The SWL which is marked on the fitting is the maximum applicable rope tension.
    The SWLs shown in this table are for reference only. These are based on the loadings as mentioned in An nex A.
    C The calculated weight (mass) is for reference only.

    Drawing of ISO 13797 Plate Fabricated Pipe Welded Mooring Towing Cruciform Bollards Ship Towing Equipment
