Diesel Engine Driven Anchor Winch With Single Drum Single Warping End

Description

The diesel engine driven anchor winch is a robust and reliable marine deck machinery solution designed for vessels with limited electric power capacity. Powered by a diesel engine, this winch ensures safe and efficient anchoring and mooring operations, making it ideal for workboats, tugboats, barges, and offshore support vessels.

Key Features
Diesel Engine Drive System: Eliminates dependency on electrical power, making it suitable for vessels with restricted power supply.

High Safety & Durability: Engineered to handle heavy loads (10–300 kN) with a rugged mild steel construction and corrosion-resistant epoxy coating.

Flexible Configuration: Available in single or double drum and single or double warping end designs to suit various operational needs.

Main Technical Specifications:

1. Safety Pull Capacity: 10-300KN
2. Speed: 8-30m/min
3. Drum Capacity: 40 to 250m
4. Single/Double Drum
5. Single/Double warping end
6. Motor Power: 3 to 75 kw
7. Rope Dia. 11 – 90 (mm)
8. Control position: Remote and Local control;
9. Optional: Load measuring, rope speed and length measuring device.
10. Power Supply: Diesel Engine
11. Material: Mild Steel,
12. Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
13. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc.

Main Technical Parameters:

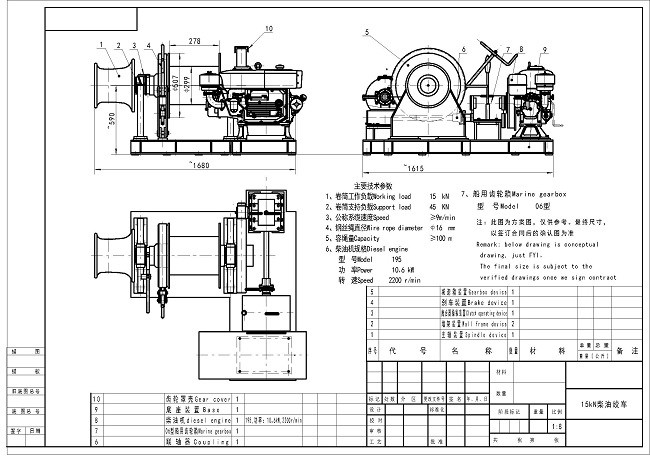

Drawing of Diesel Engine Driven Anchor Winch Single Drum Single Warping End
