    Deck Stand Vertical Electric Mooring Capstan for Barge Ship Deck Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    Deck Stand Vertical Electric Mooring Capstan for Barge Ship Deck Equipment

    Deck Stand Vertical Electric Mooring Capstan for Barge Ship Deck Equipment


    Description:

    The capstan is suitable for ship mooring. It stands highly above deck. It includes electric motor, gear box, warping head, electric switchboard.


    Main Technical Specification:

    1. Function: Mooring & Hoisting Anchor
    2. Working Load: 5KN to 250KN
    3. Warping Head Diameter: 200-700 mm,
    4. Warping Speed(m/min):9-18m/Min
    5. Wire Rope Dia. 11 - 46 (mm)
    6. Material: Stainless Steel (Polished), Mild Steel, Casting
    7. Power: Electric,
    8. Control: Local or Remote Control
    9. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.

    Main Technical Parameter:

    Chain Dia.

    (mm)

    Working Load (KN)Nominal Speed (m/min) ≥Warping Load (KN)Motor Power (KW)
    AM2AM3ElectricHydraulic
    12.56.614.6952.2/0.752.2
    148.317.2962.2/0.753
    1610.920982.2/0.754
    17.51314.69103/1.34/5.5
    1915.317.29104.3/1.75.5
    2017.9209154.3/1.75.5/7.5
    2220.6239156/2.57.5
    2424.527.49208.5/3.57.5/11
    2628.732.19208.5/3.511
    2833.337.29258.5/3.511
    3038.342.893011/11/7.515
    3243.548.693011/11/7.515
    3449.154.994016/16/1115/8.5
    3655.161.694016/16/1118.5
    3861.468.995016/16/1118.5/22
    40687696022/22/1622/30
    427583.896022/22/1622/30
    4482.39297022/22/1630
    4689.9100.598030/30/2230
    4897.9109.498030/30/2230/37
    50106.3118.899030/30/2237
    52114.9128.4910030/30/2237/45
    54123.9138.5910045/45/3045
    56133.3149912045/45/3045
    58143159.8912045/45/3045/55
    60153171914045/45/3055
    62163.4182.6915045/45/3055
    64174.1194.6916060/60/4555/75
    66185.1206.9916060/60/4575
    68196.5219.6918060/60/4575
    70208.3232.8920060/60/4575

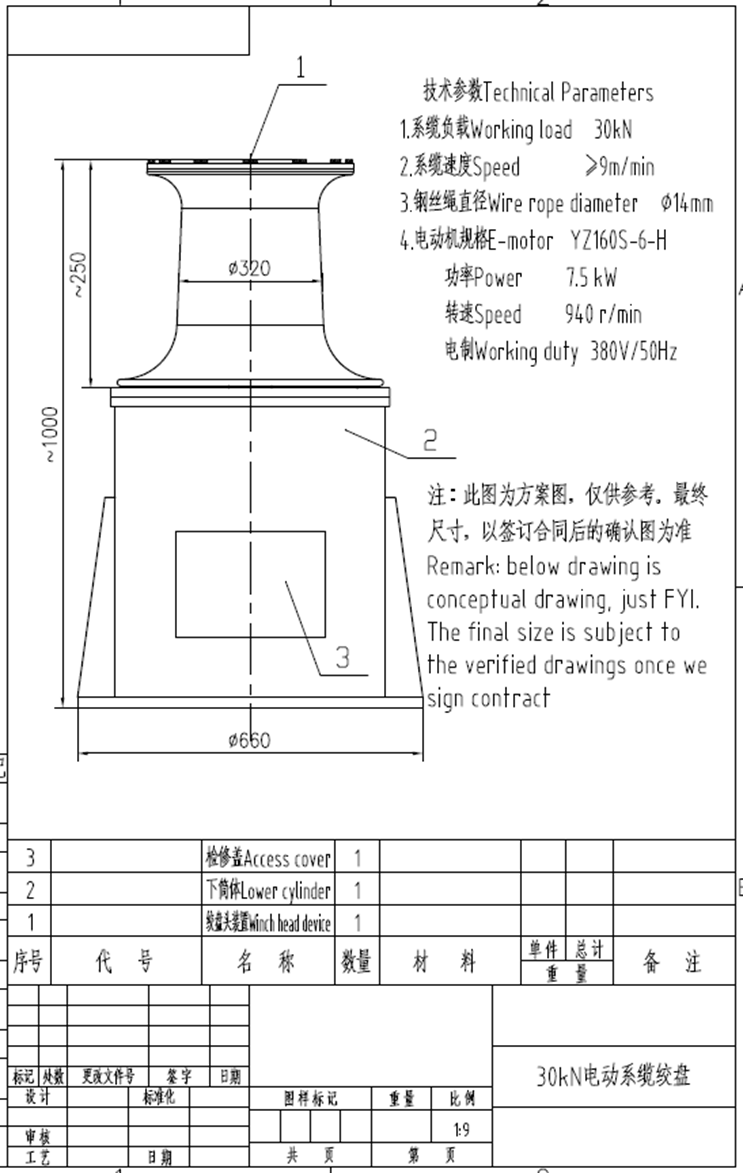

    Drawing of High Deck Stand Vertical Electric Mooring Capstan for Barge Ship Deck Equipment
