Boat Hydraulic Anchor Windlass with Single Gypsy Single Warping End

Description:

Our boat hydraulic anchor windlass, with a diameter ranging from 12.5mm to 28mm, is specially designed as anchoring equipment for work boats, barges, small ships, and inland waterway vessels.

Our small electric hydraulic windlass features a single gypsy, a single warping end, compact hydraulic motor and gearbox, manual belt brake, and manual clutch. Additionally, it is equipped with a small lever-operated proportional control valve. The anchor windlass for small boats is powered by an electric hydraulic power unit with dual motors and pump sets.

We use high-quality Chinese marine electric motors and hydraulic motors, along with ABB or Schneider electric components, in the manufacturing of our windlass. Furthermore, we also produce electric and hydraulic anchor winches for tugboats and small ships.

Product Features:

1. Compact structure
2. Small volume, occupying minimal space
3. Lightweight
4. Low-cost maintenance
5. Dual-motor pump station, with one for use and one as backup
6. Built as per Classification Rules for sea-going ships and Inland Water Way ships. Suitable for limit area on deck

Main Technical Specification

1. Dia.12.5 Electric Hydraulic Windlass
2. Working Load: 11.8KN
3. Overload: 17.7KN
4. Brake Load Capacity: 50KN
5. Speed(m/min): ≥10m/Min
6. Anchor Chain: Dia. 12.5 (mm), U2
7. System pressure: ~16MPa
8. System flow Rate: ~12L/min
9. Material: Mild Steel, Casting
10. Power: Hydraulic Motor, Hydraulic power station
11. Classification Certificates: BV, ABS, DNV-GL, LR, KR, BKI, IRS, RS, CCS, NK, Etc.

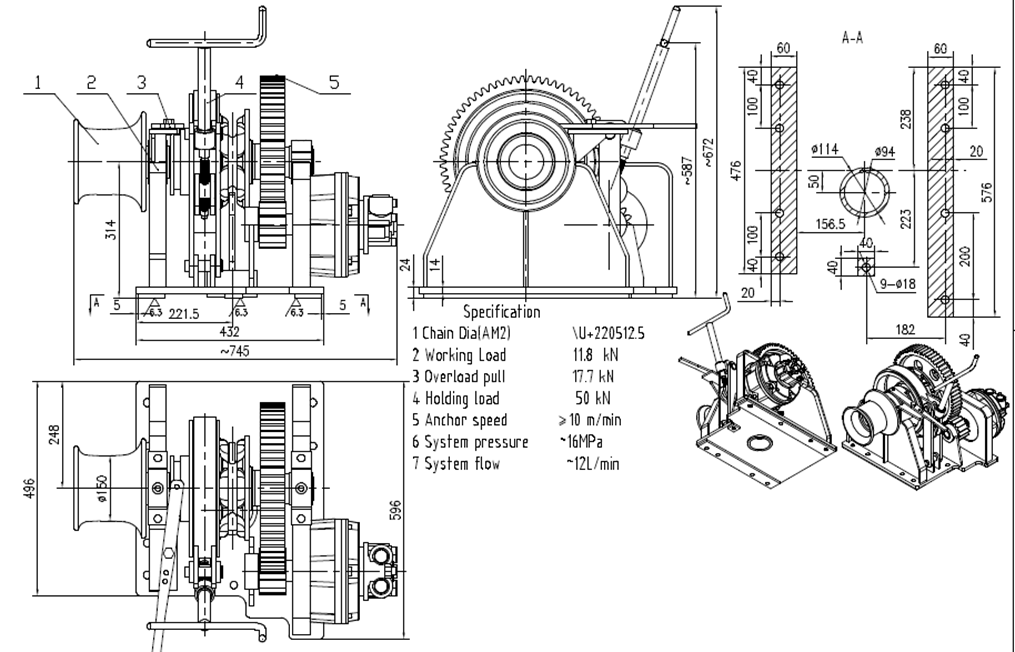

Drawing of Single Gypsy Single Warping End Hydraulic Anchor Windlass for Boat Ship Deck Equipment

Founded in the 1990s, Zhongyuan Ship Machinery Manufacture (Group) Co., Ltd. comprises four factories and one exporting company,
employing over 300 personnel with 20 experienced technicians & engineers. Our export trade company facilitates seamless delivery of
cargo worldwide.

Our factories are certified with ISO 9001, OHSAS 18001, ISO 14001, and ISO 45001, as well as possessing Type Approval certificates
from DNV, LR, BV, and ABS. Additionally, we hold Works Approval certificates from ABS, DNV, LR, and BV, various class approved
WPS & qualified welders. All our products are eligible for certification from IACS classification societies such as DNV, ABS, LR, BV,
CCS, RINA, KR, NK, IRS, and RMRS. Our factories have secured two national patents, one for a steel plate rolling machine and two
utility model patents.

We manufacture Deck Equipment & Machinery, Mooring & Towing Equipment, Deck Outfitting, Hydraulic Cylinder, Hydraulic Power
Unit, Shaft, Rudder Stock, Shaft and Rudder system, Marine Hardware, Lifting & Lashing Equipment, Hoisting & Rigging.

We distribute Lifeboat, Rescue Boat, Boat Launching Appliance and Davit, Life-saving Equipment and Facilities, Fire-fighting
equipment, Rubber Fender, Rubber Packing, Pumps, Valves, Pipe Fittings, Multi-core Pipes and accessories, Steel Wire Rope,
Mooring Rope, Rope Nets, Anchors & Anchor Chains, Various Chains;

We pride ourselves on manufacturing & delivering reliable, high-quality products at competitive prices to our esteemed clients.

Our major equipment and facilities include various CNC machining centers with a range of CNC machine tools & CNC cutting
machines, boring and milling machines, hydraulic press machinery, plate rolling machines, welding robots, welding equipment, and
shot blasting machines, dust free paint workshop, etc.
