    Manual Operate Bond Cable Reel CB*875-78

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    Manual Operate Bond Cable Reel CB*875-78

    Manual Operate Bond Cable Reel CB*875-78


    Description

    CB*875-78 bond cable reel is used to store ship grounding cables.


    Main Technical Specifications:

    1. Applicable to Store bond cables;

    2. Model Type: A28, B16, B22,C36,C44;

    3. Cable Diameter:27.6~44mm;

    4. Drum Storage Capacity of Steel Wire Length: 150~230m;

    5. Foot Bolts Quantity: 6~14;

    6. Material: 304, 316L Stainless Steel, Polished Stainless Steel, Mild Steel.

    7. Smooth Surface without Burrs, Cracks, Sharp Corners etc.

    8. Shaft Lubricated;

    9. Sa2.5 Sandblasting and Anti-corrosive epoxy Painting;

    11. Meet Customer’s Special Requirements;


    Main Technical parameters:


    TypeNameModelApplicable CableRemark
    Cable Diameter
    (mm)
    Max. Length of Cable (L) m
    A

    Cable Reel with Electric

    Current Loop

    A2827.6150

    CHF R Cable 3x25 50A

    below

    BHandle Type Cable ReelB1612.7125
    16100
    B2220.3200
    22.6180
    CHand Wheel Type Cable ReelC3628220
    36180
    C4438230
    44200

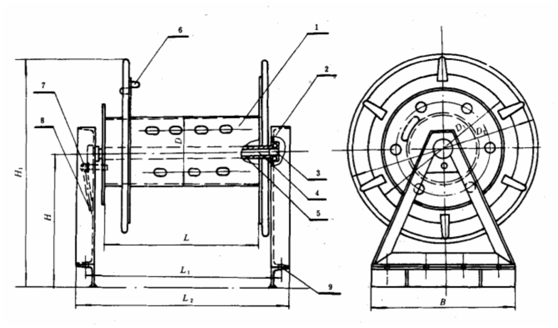

    Drawing of Type A cable reel with electric current loop

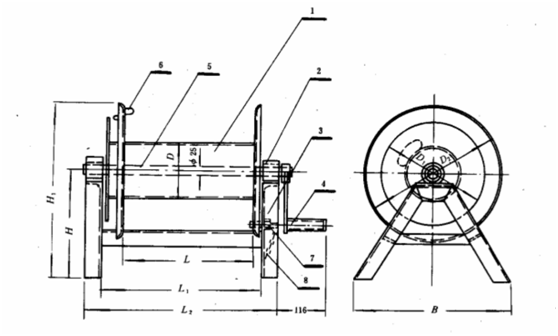

    Drawing of Type B handle type cable reel

    Drawing of Type C hand wheel cable reel
