    Electric Driven Steel Wire Rope Reel CB*3048 Type A Single Drum

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

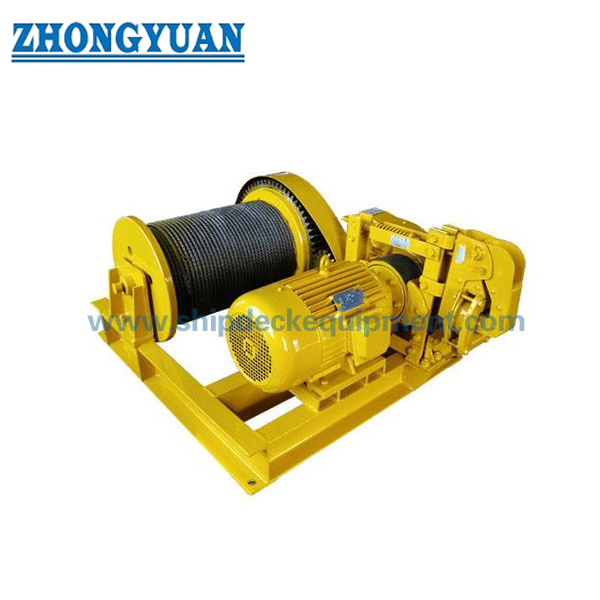

    Electric Driven Steel Wire Rope Reel CB*3048 Type A Single Drum

    Electric Driven Steel Wire Rope Reel CB*3048 Type A Single Drum


    Product Description

    Electric driven steel wire rope reel CB3048 type A is designed for storage steel wire ropes. It is driven by electric motor cpmnined with gearbox on the common base structure. It is controlled by an electric push button, with two direction rolling and emgerncy stop function. Crew can use handle to operate through the worm gear reducer when there is no electric power. Type A has single drum.


    Main Technical Specifications:

    1. Type Model: A26, A32,
    2. Max. Diameter of Steel Wire: 26~32mm;
    3. Electric motor RPM: 1350/410 min-1
    4. Drum Storage Capacity of Steel Wire Length: 210-220m;
    5. Material: Stainless Steel and Mild Steel;
    6. Shaft Lubricated;
    7. Sa2.5 Sandblasting and Anti-corrosive epoxy Painting; Polished
    8. Maker or Classification Certificates
    9. Can Meet Customer’s Special Requirements;

    Main Technical Parameters:

    Type
    Mode
    Steel Wire
    Max. Dia.
    (mm)
    Steel Wire
    Length
    (m)
    Motor
    Power
    (kw)
    Motor RPM
    Speed
    (min¯1)
    Drum Rope
    Speed m/min
    1350 Min¯1
    Drum Rope
    Speed m/min
    410 Min¯1
    External
    Dimension
    LxBXH
    (mm)
    Weight
    (kg)
    A26262204.3/1.71350/41056171330x 1360x 1175545
    A323221060181430 x 1450x 1330575
    Type
    Mode
    Max.Steel
    Wire Rope
    Diameter
    DD1BB1LL1HH1Weight
    kg
    A 26263008701120136055013307301175545
    A 323236010501120145065014308001330575
    Drawing of CB*3048 Type A Single Drum Electric Driven Steel Wire Rope Reel Ship Deck Equipment
