Shipside Hydraulic Watertight Door For Pilot

Description:

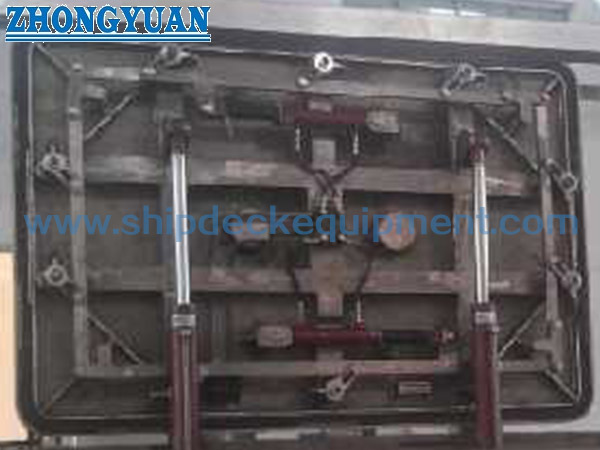

Shipside hydraulic watertight door for pilot, which are used as a passage for pilot and are operated by hydraulic power system, are fitted in the side shell plating, one in port side and one in starboard side respectively. This is consisted of several major parts including folding type door body, ladder reel with rope ladder, hydraulic cylinders, power unit and etc. In closed position the door is flush with the side shell plating, and in open position the door is stowed inside against the perpendicular wall to the shell plate folded into half size by the folding hinges. Watertightness of the door in its closed position is acquired by means of rubber seal installed along the edge of the door in conjunction with the locking devices called cleats.

Main Technical Specifications:

1. Standard: CB 672, GB 10840,CB/T 3007 CB 3041,ISO Standard

2. Material: Mild Steel, Stainless Steel, Aluminium,

3. Test: Fire Approval Test, Gas Tightness Test, Hydraulic Pressure Test, Hose Test, Air Test, Chalk Test, as applicable

4. Dimension: Customized, As client’s drawing, As Standard

5. Application Type: Watertight, Weathertight, Gastight, Sound Proof, Fire Proof ( C to A60 Class), as applicable

6. Leaf Type: Single Leaf, Double Leaf, Single Skin, Double Skin,

7. Application Location: Accommodation, Cargo Hold, Bulkhead, Boundary

8. Open Type: Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc.

9. Power resource: Pneumatic, Electric, Hydraulic, Manual,

10. Closing Device: Anti-Piracy

11. Classification Certificates:Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.

Main Technical Parameters:

Drawing of Shipside Hydraulic Watertight Door for Pilot Marine Outfitting​
