    CB/T 3842 B Square Type Quick Acting Watertight Small Hatch Cover Marine Outfitting

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    CB/T 3842 B Square Type Quick Acting Watertight Small Hatch Cover Marine Outfitting

    CB/T 3842 B Square Type Quick Acting Watertight Small Hatch Cover


    Description:

    CB/T 3842-2000 type B quick acting small hatch cover is square type watertight hatches. It is designed for hydraulic pressure 0.2MPa. Higher pressure can be designed case by case subject to class approval. The standard height of the coaming is 200mm. Higher height can be produced with thicker and stronger plate. It can be open from both side with quick action handwheel. Spring hinge makes operation of the hatches easily.


    Main Technical Specification:

    1. Standard: CB/T 3842-2000
    2. Material: Mild Steel, Stainless Steel,
    3. Packing Materials: Neoprene, NBR ,Hi NBR,
    4. Test: Hydraulic Pressure Test
    5. Dimension: As Standard or Customized, As client’s drawing,
    6. Application Type: Water-tight, Gas Tight,
    7. Open Type: Hand Wheel Quick Operate
    8. Closing Type: Hinged with Spring
    9. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
    10. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

    Main Technical Parameters:

    Nominal

    Size

    A x A

    Deck

    Cutout
    A1 x A1

    Coaming

    Inner Size

    A2 x A2

    Cover Plate Size

    A3 x A3

    Cover Plate

    Thickness

    t

    CoamingWeight
    ThicknessHeight
    600x600640x640670x670720x7201212200310
    700X70040X740770x770820X820340
    800X80040x840870X870920x920380

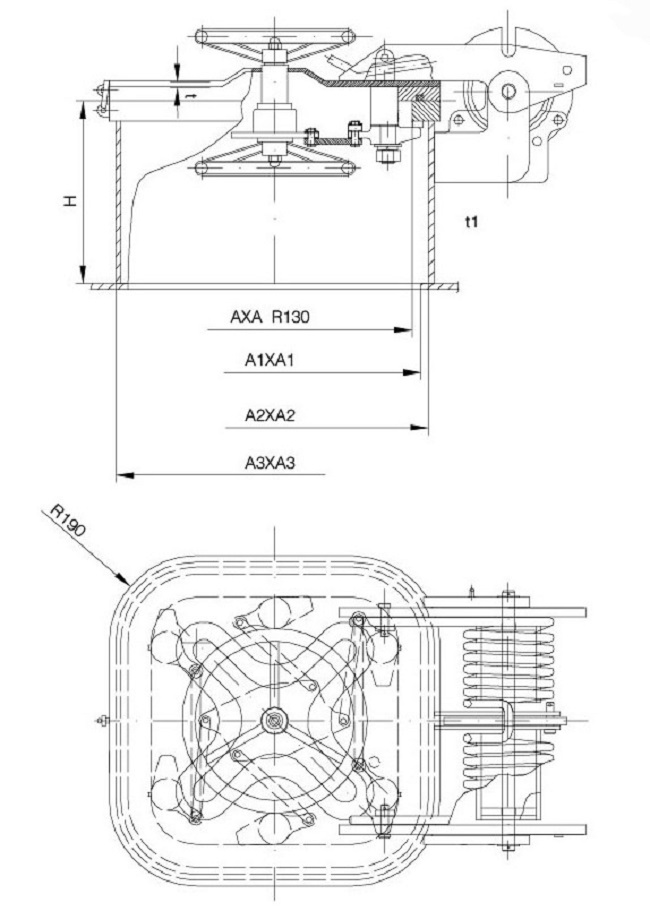

    Drawing of CB/T 3842 B Square Type Quick Acting Watertight Small Hatch Cover Marine Outfitting
