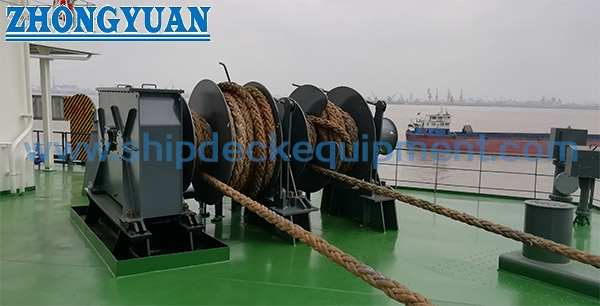

Electric Hydraulic Mooring Winch Double Drum Single Warping End

Description

Electric sydraulic mooring winches are usually used to ship’s mooring with large rated load. It includes hydraulic motor(can be multiple speed), gear box, clutch, drum, warping end, Hydraulic power unit, electric switchboard, etc. HPU is driven either by electric motor or diesel engine. Our designers team has 30-years’ experience. We produce compact strong structure and reliable operation & stability, easy for maintenance. We provide spare parts which can reach everywhere as your demand.

Main Specification

1. Safety Pull Capacity: 5-800KN
2. Speed: 4-12m/min
3. Warping Speed(m/min):9-18m/Min
4. Drum Capacity: 40 to 250m
5. Single/Double Drum
6. Single/Double warping end
7. Motor Power: 4 to 132 kw
8. Rope Dia. 11 – 90 (mm)
9. Control position: Remote and local control;
10. Optional: Load measuring, rope speed and length measuring device.
11. Power Supply: AC380V, 50HZ 3PH, AC415V 50HZ 3PH, AC440 60HZ 3PH
12. Material: Stainless Steel (Polished), Mild Steel,
13. Surface treatment: sandblasting to S2.5 + 3 layers of epoxy paint,
14. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, RINA, IRS, RS, Etc.

Main Technical Parameters:

Drawing of Electric Hydraulic Mooring Winch Double Drum Single Warping End
