    Electric Vertical Mooring Capstan Ship Deck Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

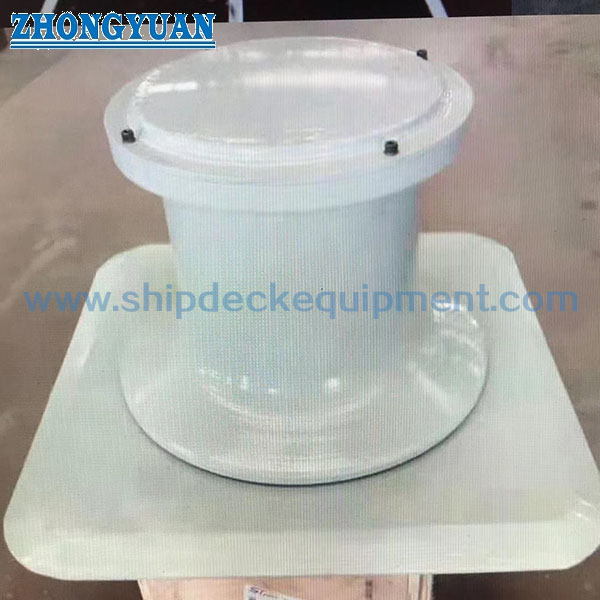

    Electric Vertical Mooring Capstan Ship Deck Equipment

    Electric Vertical Mooring Capstan Ship Deck Equipment


    Description:

    Electric Vertical Mooring Capstan Ship Deck Equipment is suitable for ship mooring. It includes electric motor, gear box, valve block, warping head, brake and electric switchboard & control unit as applicable.


    Main Technical Specification:

    1. Function: Mooring
    2. Working Load: 5KN to 250KN
    3. Warping Head Diameter: 200-700 mm,
    4. Warping Speed(m/min):9-18m/Min
    5. Wire Rope Dia. 11 - 46 (mm)
    6. Material: Stainless Steel (Polished), Mild Steel, Casting
    7. Power: Electric, Can be explosive proof
    8. Control: Local or Remote Control
    9. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.

    Main Technical Parameters:

    Working Load

    (KN)

    Warping Speed

    (m/min)

    Rope Dia.

    (mm)

    Motor

    (kw)

    59-18Ф113/1.2
    109-18Ф114.3/1.7
    159-18Ф138.5/3.5
    209-18Ф1511/11/7.5
    309-18Ф17.516/16/11
    509-18Ф20.516
    709-18Ф2622
    1009-18Ф2845/45/30
    1209-18Ф32.560/60/45
    1509-18Ф36.560/60/45
    2009-18Ф4075/75/36
    2509-18Ф4675/75/36

    Drawing of Flange Deck Mounted Electric Vertical Mooring Capstan Ship Deck Equipment
