    3T 20m Hydraulic Telescopic Boom Shipboard Crane with Operator Cabin

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA,CCS, NK, Makers Test Certificate, Etc.
    Model Number : Shipboard Telescope Crane
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    3T 20m Hydraulic Telescopic Boom Shipboard Crane with Operator Cabin

    3T 20m Hydraulic Telescopic Boom Shipboard Crane with Operator Cabin


    Description:

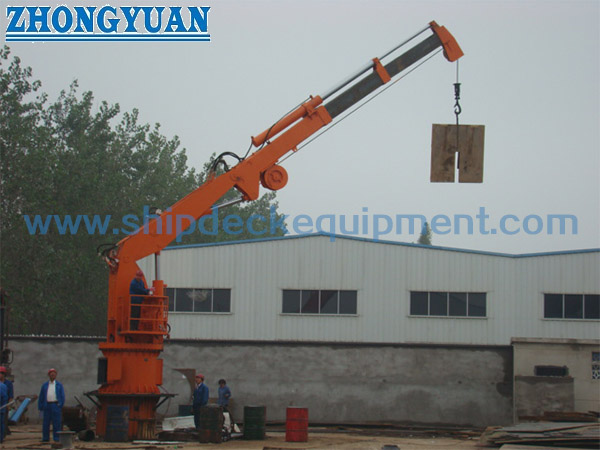

    3T 20m hydraulic telescopic boom shipboard crane with operator cabin features a hydraulic extended boom with a hoisting winch. Shipboard hydraulic telescopic boom crane includes the base pedestal, arm frame, tower, hydraulic winch, hydraulic cylinder, slew bearing, platform, hydraulic transmission parts, electric switchboard, and operator cabin.

    The pedestal is a cylinder structure that can be welded onto the deck or mounted with high-strength bolts.

    The boom and tower are box structures, with the hydraulic winch used for hoisting and the hydraulic cylinder for luffing and adjusting the working radius.

    We can also make options for stiff boom, fixed boom, folding boom, and telescope & knuckle boom cranes providing flexibility for different operational needs.


    Product Features:

    1. Less occupation deck space
    2. Smooth and steady telescoping, slewing, luffing, hoisting operation
    3. Wider range of working radius
    4. Hydraulic telescopic boom, multi-stage telescoping
    5. With air conditioning operator cabin option
    6. With hydraulic motor driven hoisting winch.
    7. Spare parts lifetime available
    8. 12 months quality warranty
    9. Bolted or welded foundation
    10. Easy and low-cost maintenance

    Main Technical Specifications:

    1. Safe Working Load: 0.5 to 3 ton
    2. Working Radius: 5 to 20m
    3. Boom Type: Hydraulic telescope
    4. Hydraulic cylinder luffing
    5. Working Temperature: from -40 to 50℃
    6. Slewing: 360°, with limit switch
    7. Surface Treatment: Sandblasting to S2.5 standards, 3 layers of epoxy paint marine standard C5M.
    8. Classification Certificates: BV, ABS, DNV, LR, KR, IRS, RS, CCS, NK, and RINA,

    Main Technical Parameters:

    SWL
    (Ton)

    Working

    Radius
    (m)

    Slewing
    Speed
    (rpm)

    Hoisting

    Speed
    (m/min)

    Luffing
    Time
    (Second)

    Hoisting Height

    (m)

    Power Rating

    (kw)

    0.55-200.5-110-1550-6030-403
    15-200.5-110-1550-6030-405.5
    1.55-200.5-110-1550-6030-4011
    25-200.5-110-1560-7030-4015
    35-200.5-110-1570-8030-4025

    Drawing of 3T 20m Hydraulic Telescopic Boom Shipboard Crane
