Brand Name : | Zhongyuan |
Certification : | CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc. |
Model Number : | Standard and Customized |
Price : | As per quotation |
Delivery Time : | As per offer |
Payment Terms : | TT, L/C, Etc. |
Supply Ability : | Satisfy clients needs |

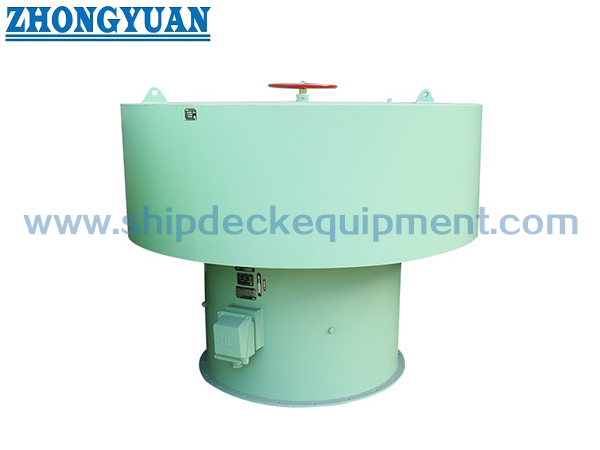

CB/T 295 Type B Weathertight Mushroom Air Ventilation With Fan Blower
Description:
CB T295 type B mushroom ventilation is welded type mushroom ventilation, It is generally used for natural ventilator simply turn handwheel to up and down covers in order for adjust the air flow volume. It is fitted with stainless mesh to prevent mouse and bugs entre into spaces.
Main Technical Specification:
Main Technical Parameters:
Nominal diameter DN | D1 | D2 | H | H1 | d | t | Weight Kg |
250 | 440 | 200 | 220 | 90 | Tr24×5-LH | 9 | 52 |
300 | 530 | 265 | 65 | ||||
350 | 620 | 310 | Tr30×6-LH | 10 | 81 | ||
400 | 710 | 280 | 345 | 105 | Tr40×7-LH | 98 | |
450 | 800 | 375 | 124 | ||||
500 | 890 | 320 | 405 | 148 | |||
550 | 980 | 435 | 167 | ||||
600 | 1050 | 470 | 120 | 171 | |||
650 | 1160 | 500 | 210 | ||||
700 | 1240 | 520 | 225 | ||||
750 | 1320 | 540 | 259 | ||||
800 | 1410 | 560 | 140 | 291 | |||
850 | 1500 | 580 | 322 | ||||
900 | 1580 | 360 | 600 | Tr46×8-LH | 357 | ||
950 | 1670 | 620 | 387 | ||||
1000 | 1760 | 640 | 420 | ||||
1100 | 1930 | 680 | 515 | ||||
1200 | 2100 | 720 | 585 | ||||
1300 | 2270 | 760 | 659 | ||||
1400 | 2440 | 400 | 800 | 674 | |||
Note: Ventilator weight does not include the weight of air duct |
Drawings of CB/T 295 Type B Weather Tight Mushroom Air Ventilation
With Fan Blower Marine Outfitting
![]() |
