    ISO 5778 Small Weathertight Steel Hatch Cover With Wing Nut Marine Outfitting

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    ISO 5778 Small Weathertight Steel Hatch Cover With Wing Nut Marine Outfitting

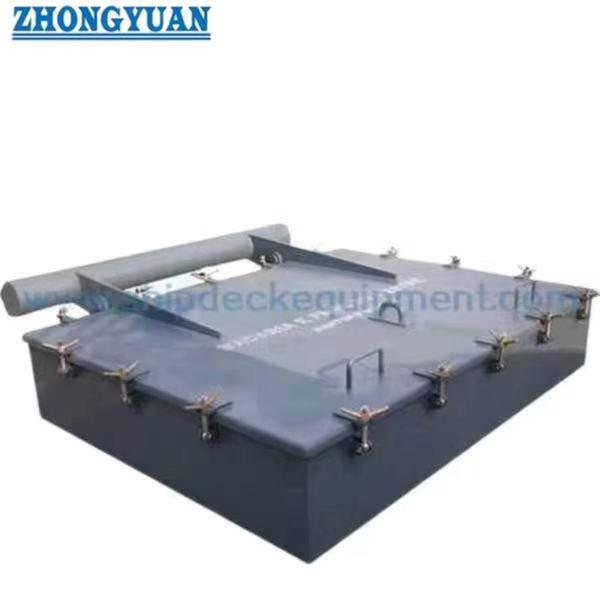

    ISO 5778 Small Weathertight Steel Hatch Cover With Wing Nut


    Description:

    ISO 5778-1998 steel weathertight hatches have good weathertight performance during hose test at 0.2MPa at 2 meters distances. good. The hatches are suitable for loading operations and for giving access to storage compartments and dry cargo holds. The hatches are not suitable as an access to any kind of tanks and shall not be used as escape hatches. These hatches generally conform to the requirements of the International Convention on Load Lines 1966 (LLC66). The possibility for application in position 1 and position 2. The coaming and cover may have square or rounded corners.


    Main Technical Specification:

    1. Standard: ISO 5778-1998
    2. Material: Mild Steel, Stainless Steel,
    3. Packing Materials: Neoprene, NBR, Hi - NBR,
    4. Test: Hose Test, Chalk Test
    5. Dimension: As Standard or Customized, As client’s drawing,
    6. Application Type: Weathertight
    7. Open & Closing Device: Wing nut, Hinged
    8. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
    9. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

    Main Technical Parameters:

    Nominal sizeCoaming a
    0
    -2
    Coaming b
    0
    -2
    Cover a1
    土 2
    Cover b1
    土 2
    630 X 630630630674674
    630 X 830630830674874
    830 X 630830630874674
    830 X 830830830874874
    1030 X 10301030103010741074
    1330 X 13301330133013741374


    Drawing of ISO 5778 Small Weathertight Steel Hatch Cover With Wing Nut Marine Outfitting
