    CB/T 3728 C Quick Action Weathertight Small Steel Hatch Cover Open Both Sides Marine Outfitting

    CB/T 3728 C Quick Action Weathertight Small Steel Hatch Cover Open Both Sides


    Description:

    Small Hatch Cover Type C is a type of quick action weathertight hatch cover. With 2 handwheel on inner side and outside it can be used as emergency escape hatch. The central closing mechanism device has 4, 6, 8 dogs depending on the size of hatches. It is hinged with spring which makes the open and close much easier for the crew.Two shapes can be produced, one square and the other round. This hatch cover is fabricated according to the standards CB/T3728- 1995.


    Main Technical Specification:

    1. Standard: CB/T 3728-2011
    2. Material: Mild Steel, Stainless Steel,
    3. Packing Materials: Neoprene, NBR, Hi - NBR,
    4. Test: Hose Test, Chalk Test
    5. Dimension: As Standard or Customized, As client’s drawing,
    6. Application Type: Weather-tight,
    7. Open & Closing Type: Hand Wheel Quick Operate both sides, Spring Hinged
    8. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
    9. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.

    Main Technical Parameters:

    Nominal size

    L×B or Diameter

    Clear Opening size

    L1×B1×R or Diameter

    Cover size L2×B2×R

    Cover

    thickness

    t

    Hatch Coaming

    Dog

    quantity

    Weight

    Exclusive Hatch Coaming

    kg

    t0H
    530×530500×500×100588×58844, 6

    150

    200

    250

    450

    600

    444.8
    592×59266, 851.4
    596×59688, 1158.0
    630×630600×600×100682×68844, 6450.0
    692×69266, 858.7
    696×69688, 1167.5
    830x830800x800x100892x89266, 8676.2
    896x89688, 1185.1
    Ф530Ф50058844, 6442.2
    59266, 847.5
    59688, 1152.8
    Ф630Ф60068844, 6446.1
    69266,853.2
    69688, 1160.2
    Ф830Ф80089266, 8673.3
    89688, 1180.2

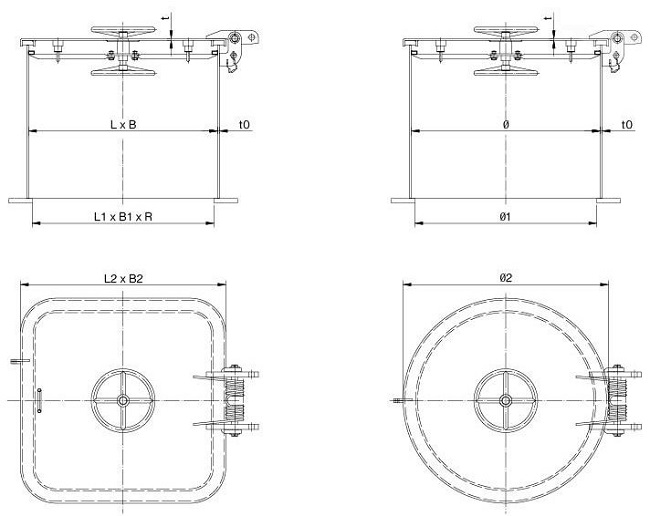

    Drawing of CB/T 3728 C Quick Action Weathertight Small Steel Hatch Cover Open Both Sides Marine Outfitting
