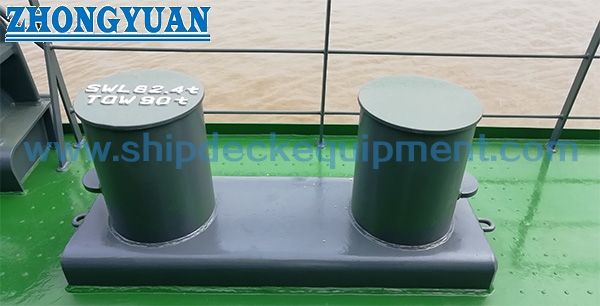

    JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment

    Ask Lasest Price
    Brand Name : Zhongyuan
    Certification : CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Makers Test Certificate, Etc.
    Model Number : Standard and Customized
    Price : As per quotation
    Delivery Time : As per offer
    Payment Terms : TT, L/C, Etc.
    Supply Ability : Satisfy clients needs
    • Product Details
    • Company Profile

    JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment

    JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment


    Description:

    JIS F2001 bollard is made for ship use according to Japanese Industrial Standard. Its appearance is free from defects such as cracks, flaw detrimental to service or rust and of good finish. Its applicable ropes are wire rope, manila and sisal fiber rope, synthetic rope for your reference.


    Main Technical Specification

    1. SWL Range: 29KN- 981KN.
    2. Materials: C-Mn Steel, Stainless Steel, also can supply special steel for icebreaker.
    3. Nominal Diameters: 100 to 800mm;
    4. Weight: 18.9 to 3071 kg;
    5. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available.
    6. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.

    Main Technical Parameters:

    Nominal Dia.

    SWL

    (KN)

    Weight(kg)Size(mm)
    ABCDΦ
    1002918.9196250165445114.3
    1253929.4246315195540139.8
    1604944.7316400225670165.2
    2007879.5378500290860216.3
    2501181394706303601065267.4
    3151962615978004301300318.5
    3552553616638904801475355.6
    40031450274910005501630406.4
    45038268584111306201840457.2
    50045191192812506902040508.0
    5605491208102513807502240558.8
    6306861601115215708202510609.6
    7108042252129417509602840711.2
    80098130711480200011003240812.8

    Drawing of JIS F 2001 Type B Fabricated Double Bitts Mooring Bollard With Wide Base Plate Ship Mooring Equipment
